Purified Water PW

Electrodeionization EDI

Electrodeionization EDI

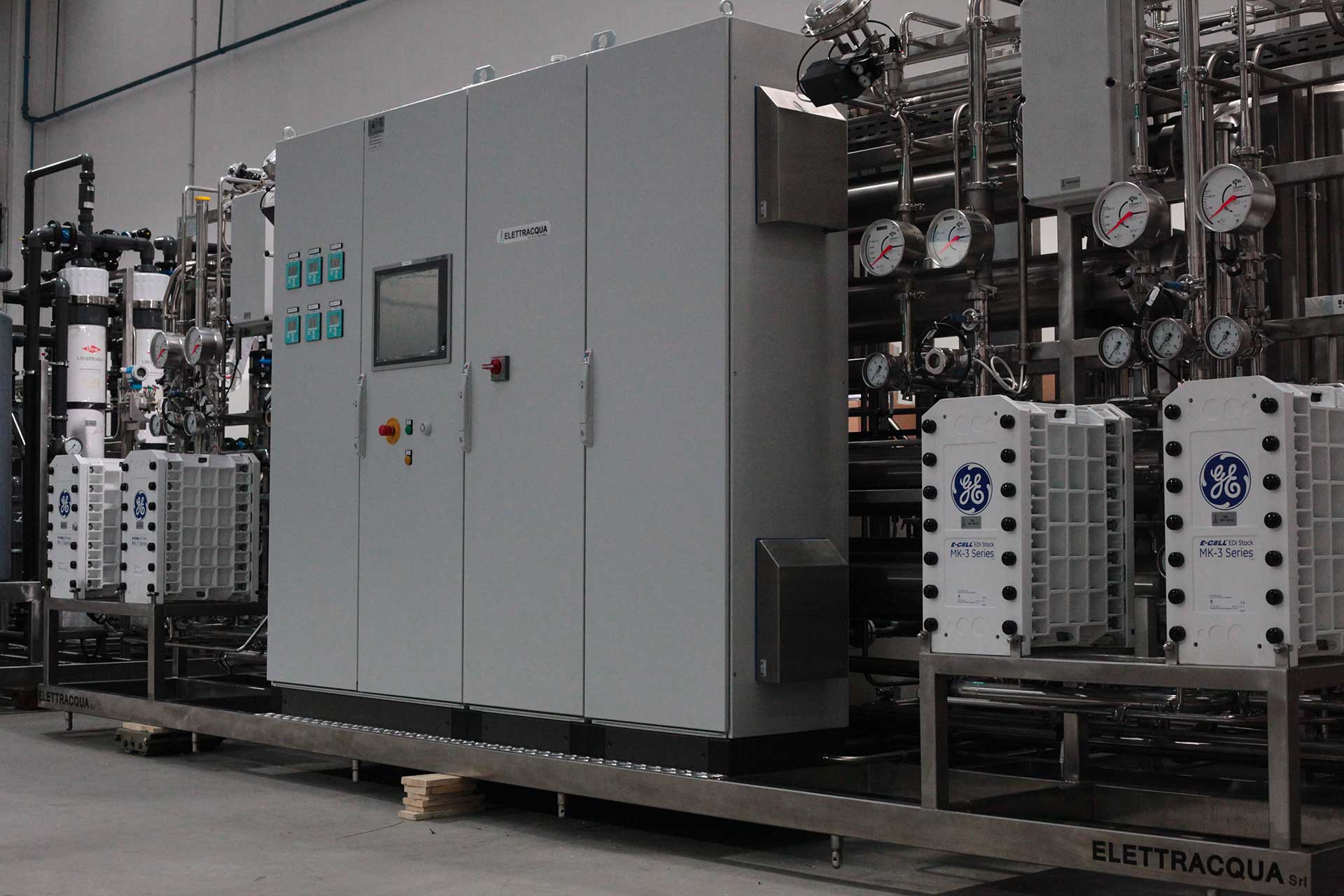

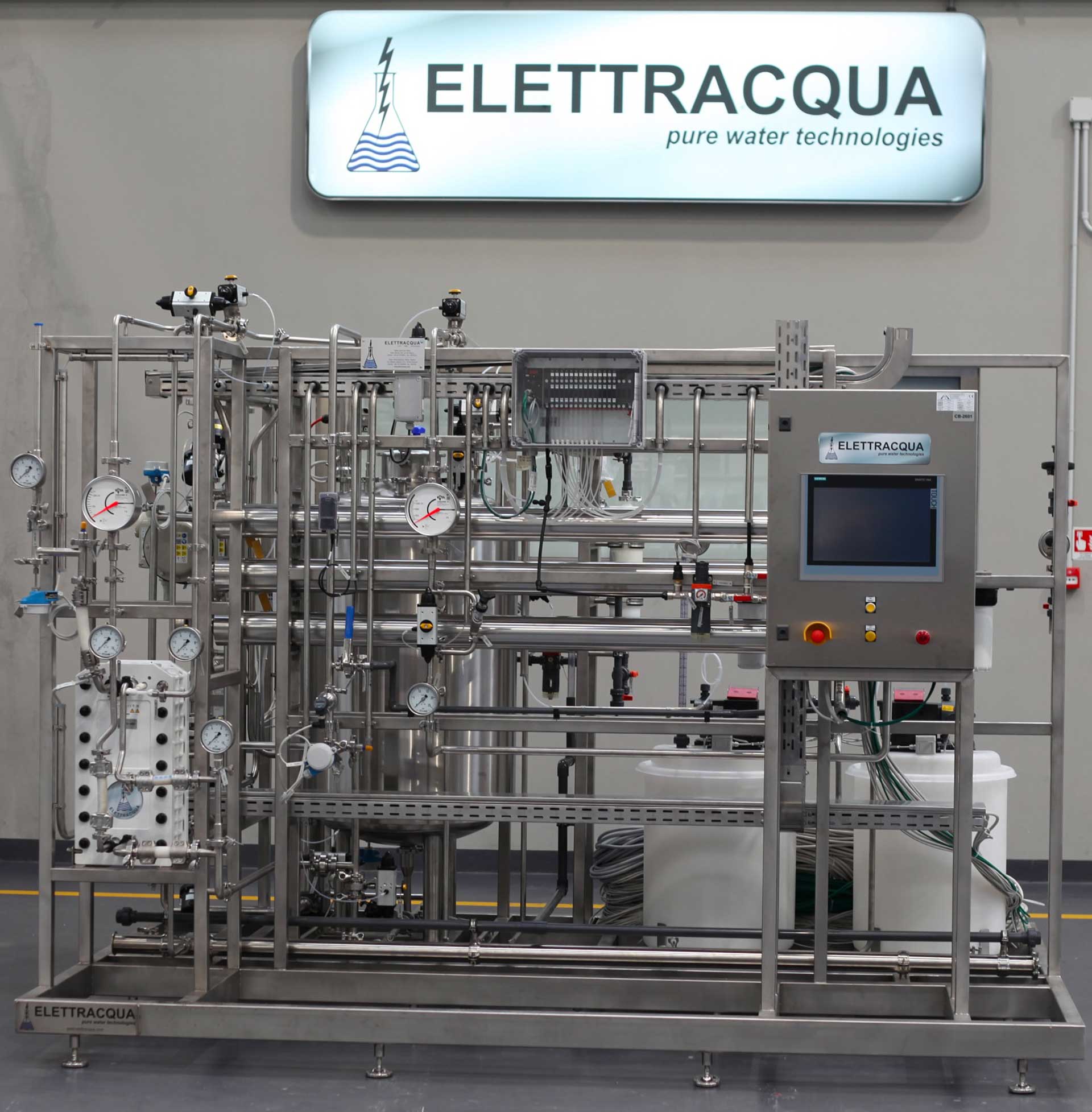

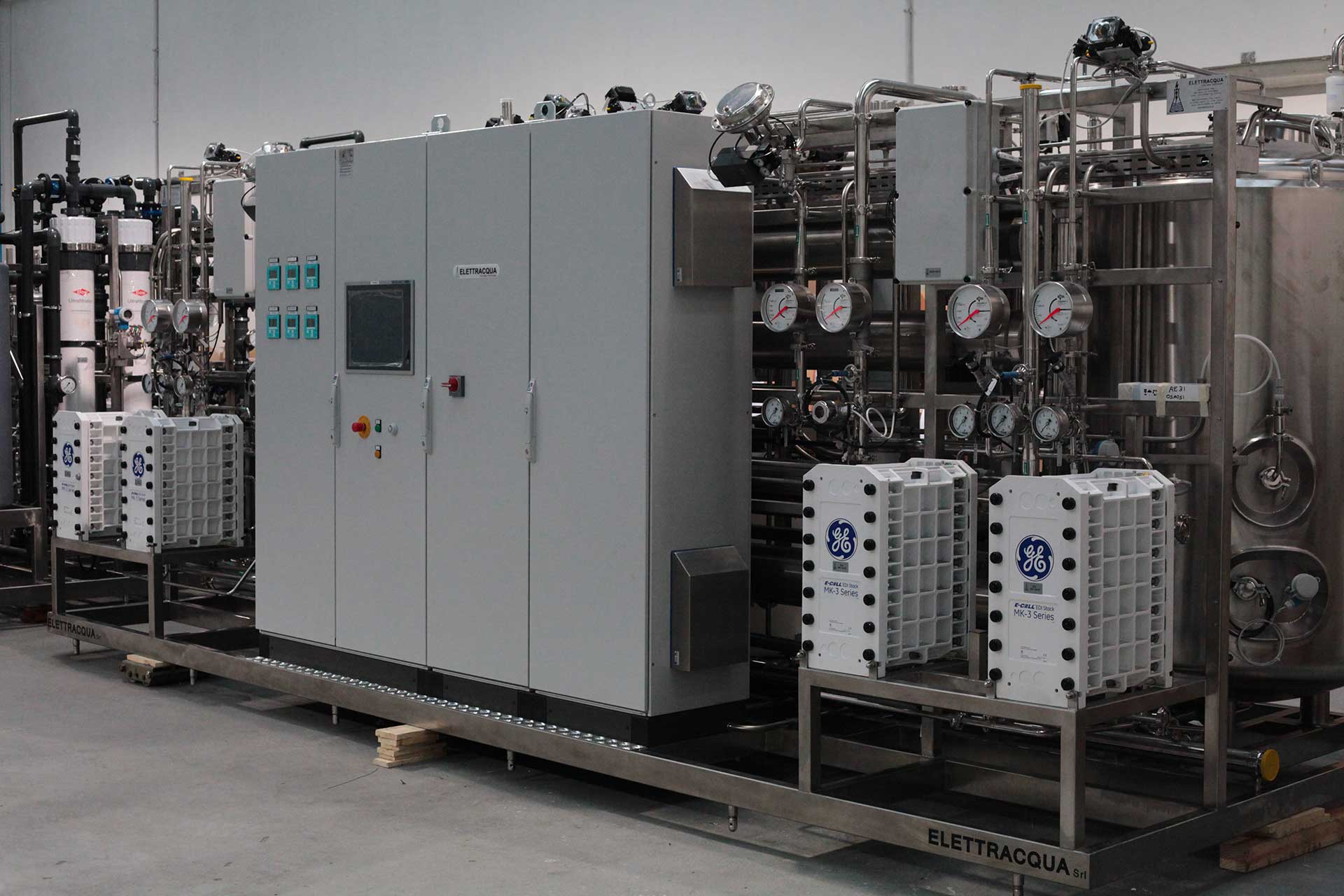

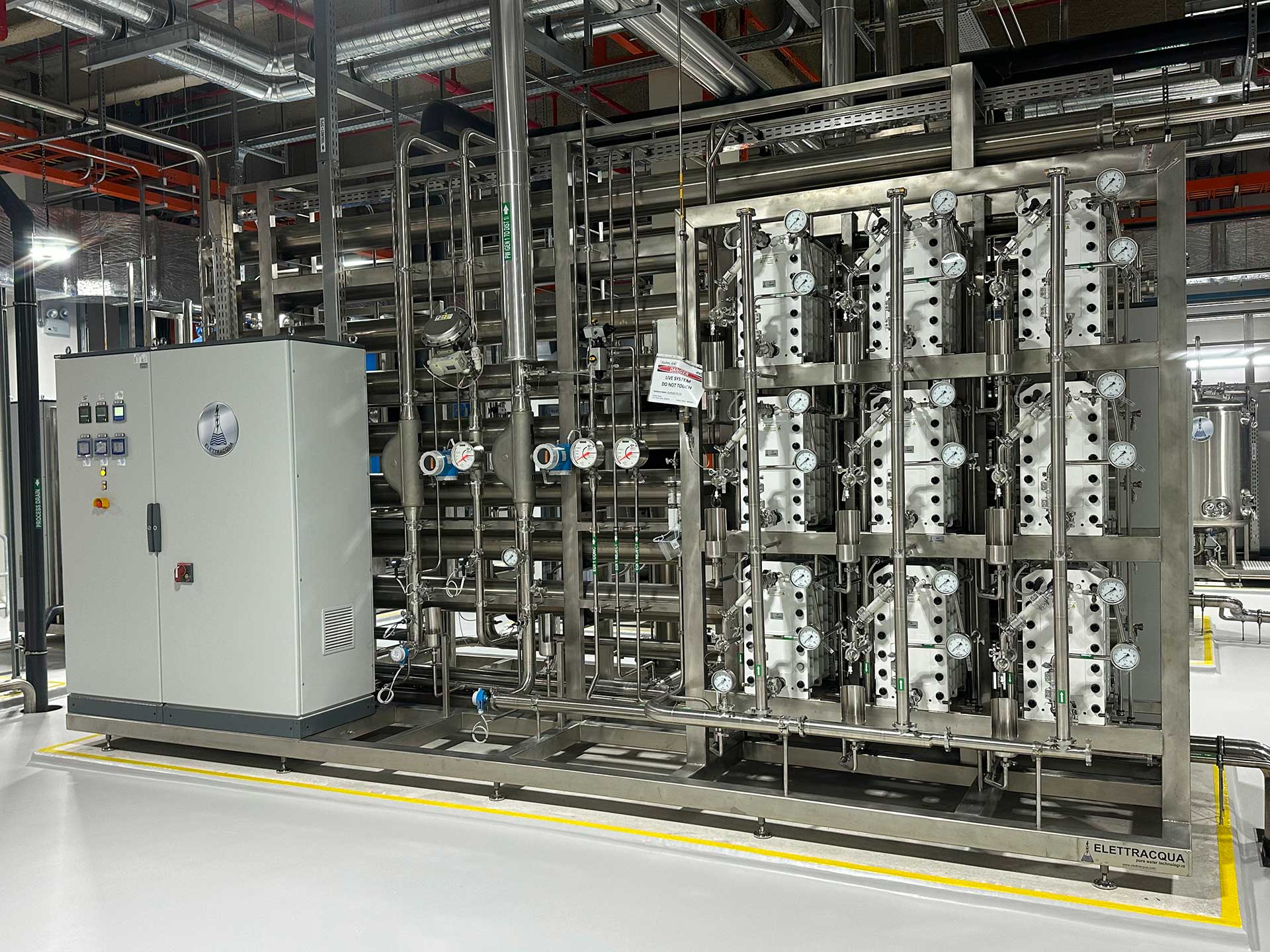

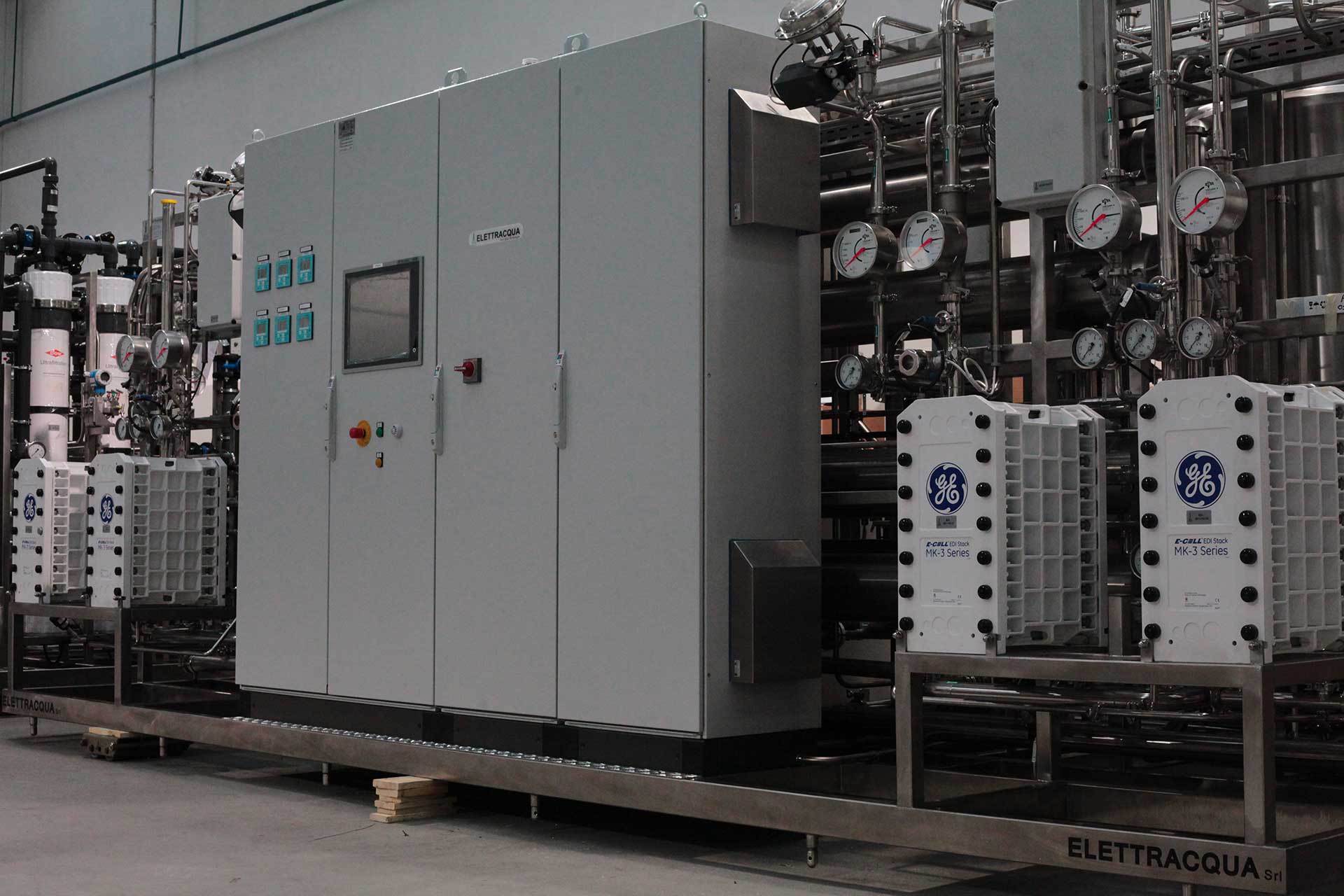

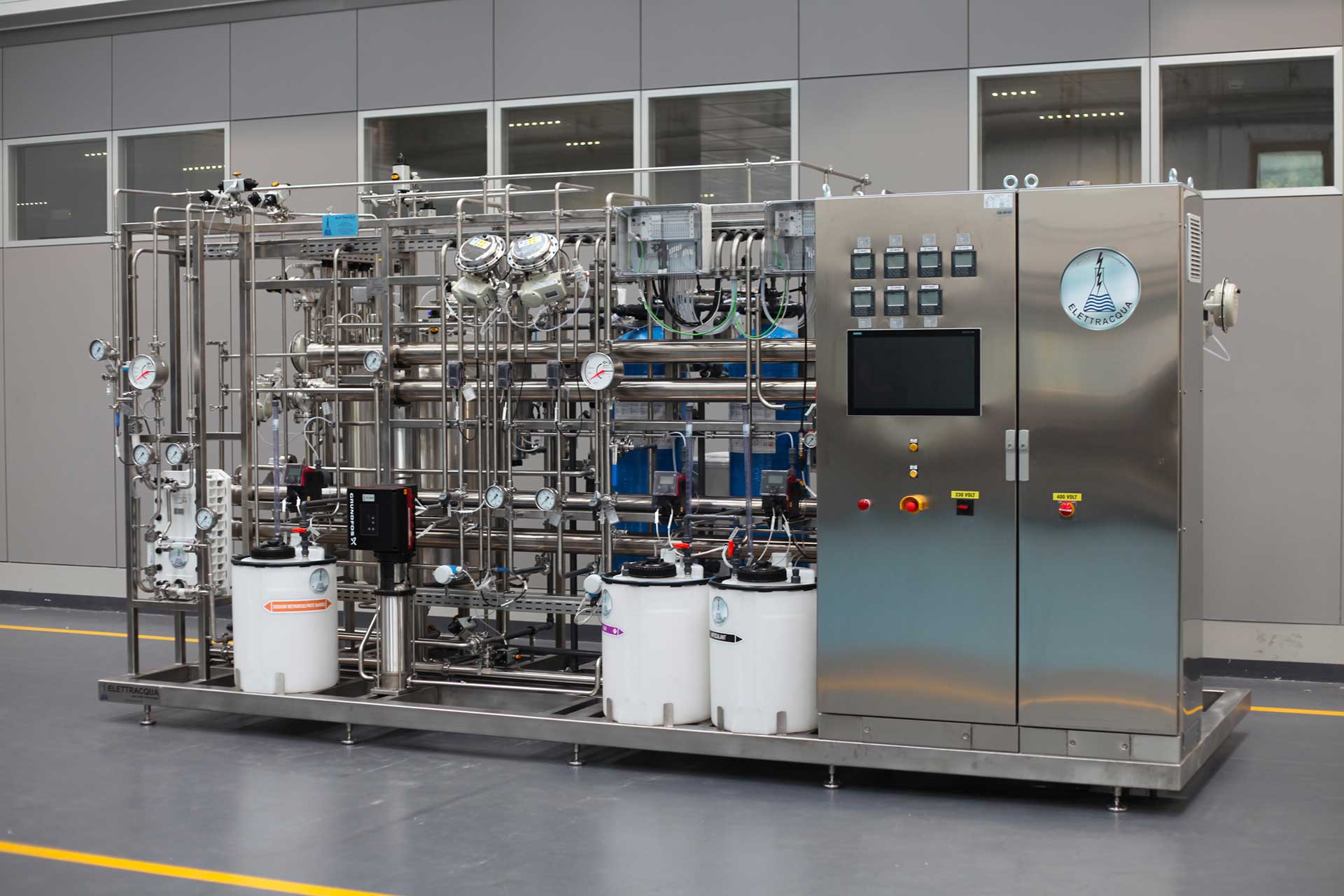

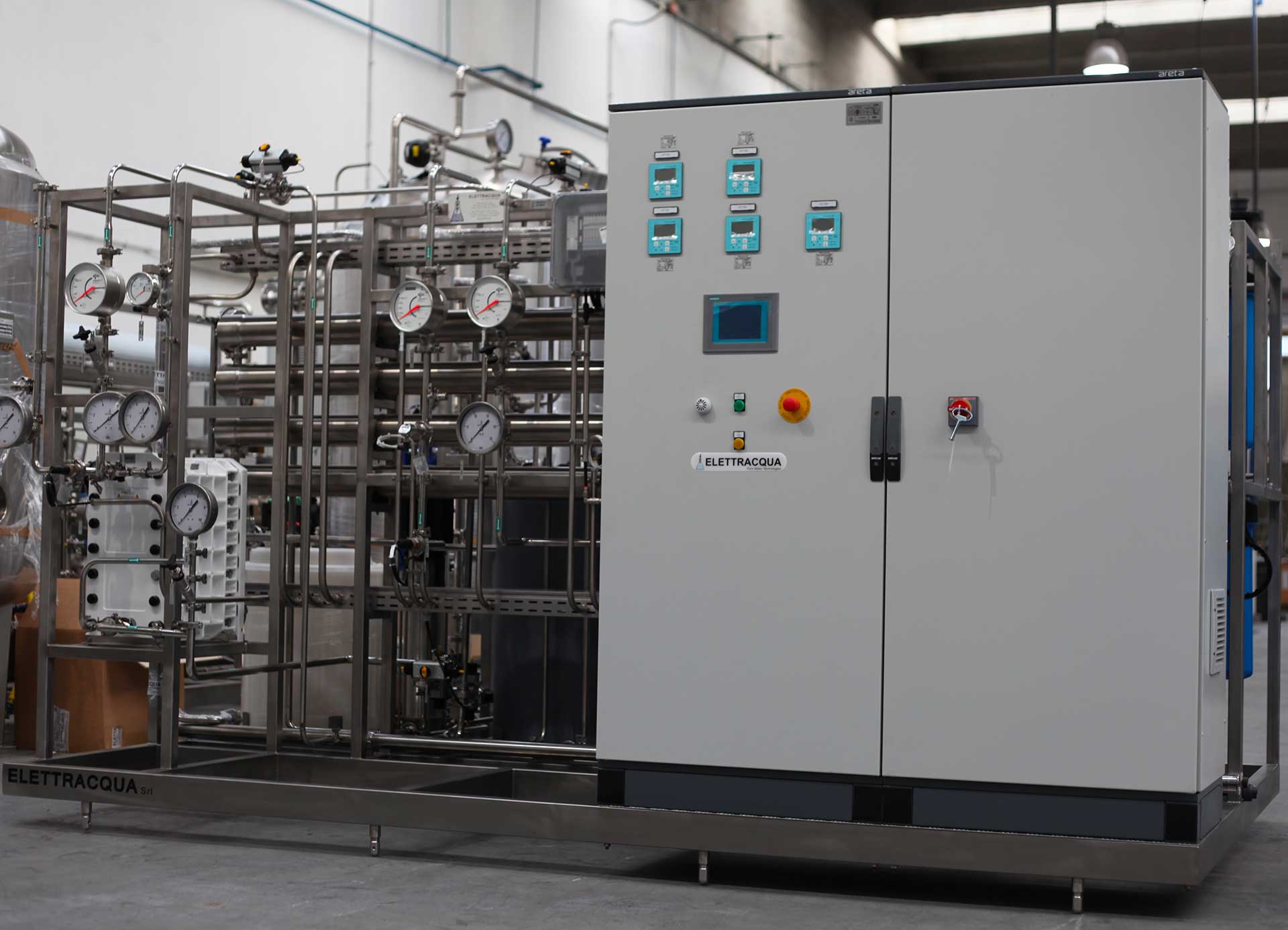

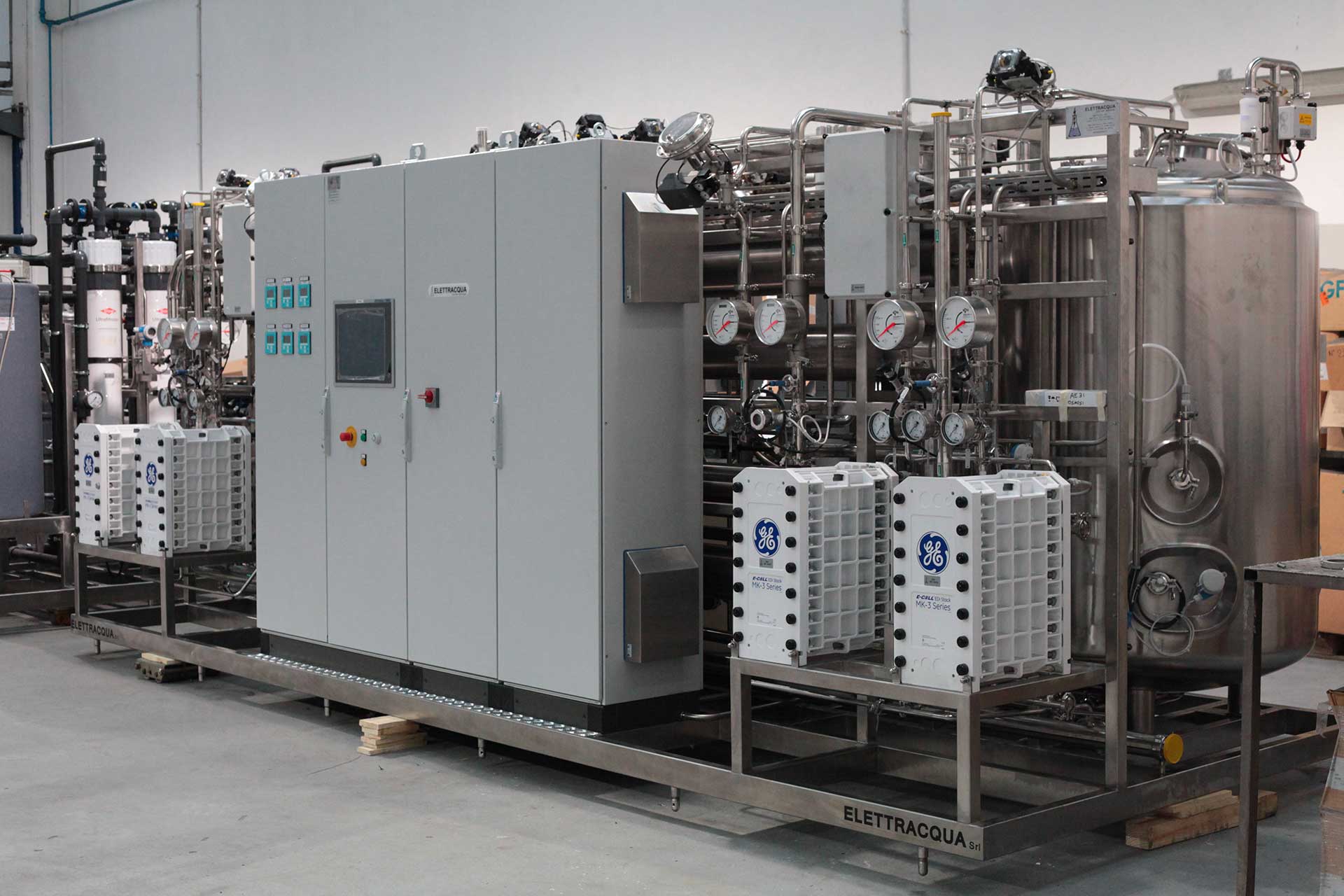

REVERSE OSMOSIS + EDI

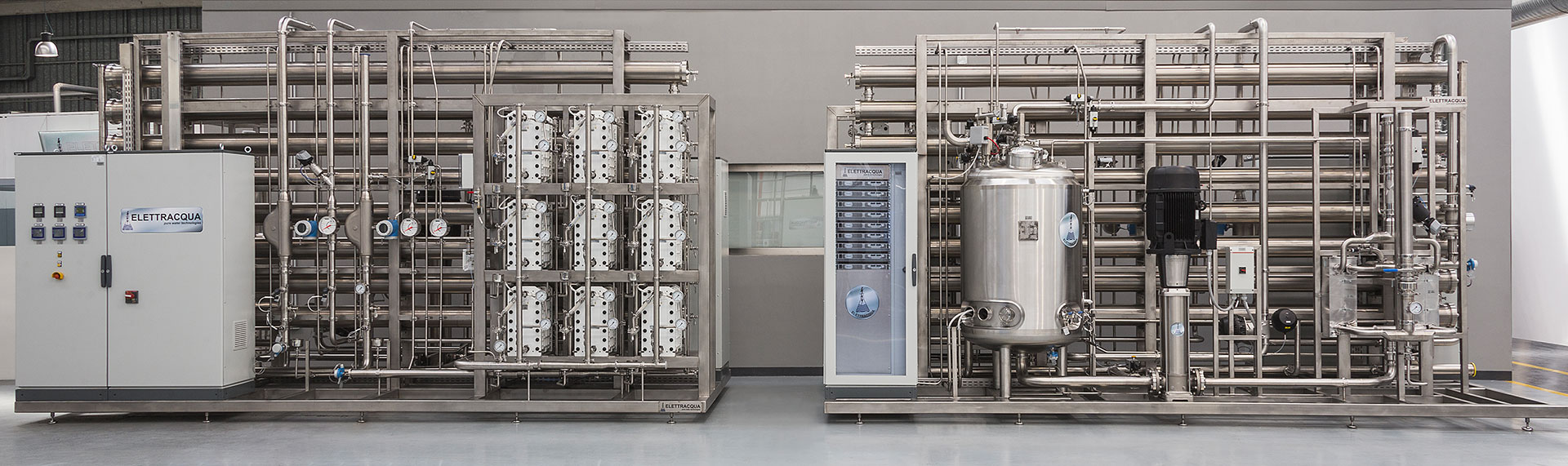

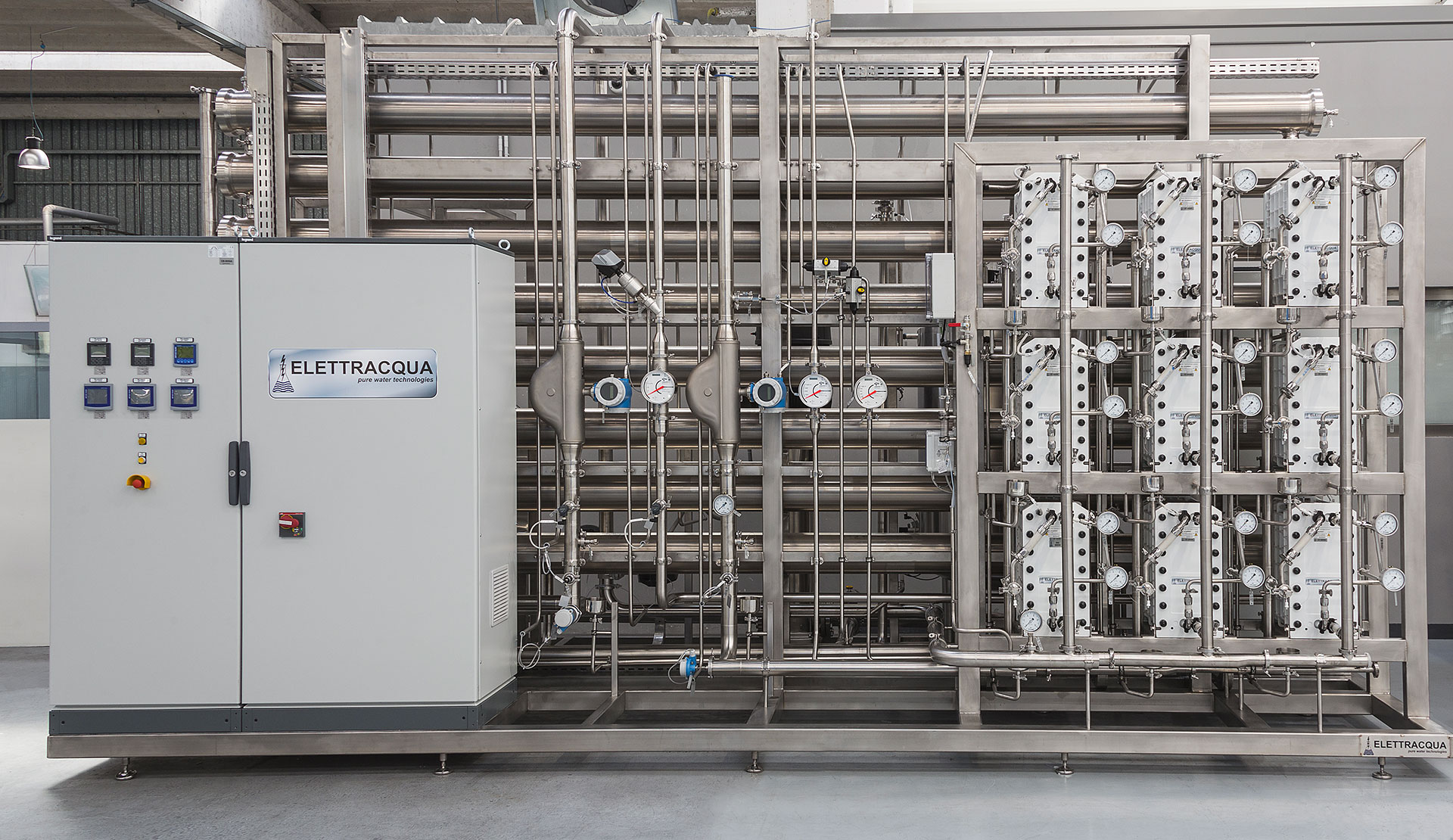

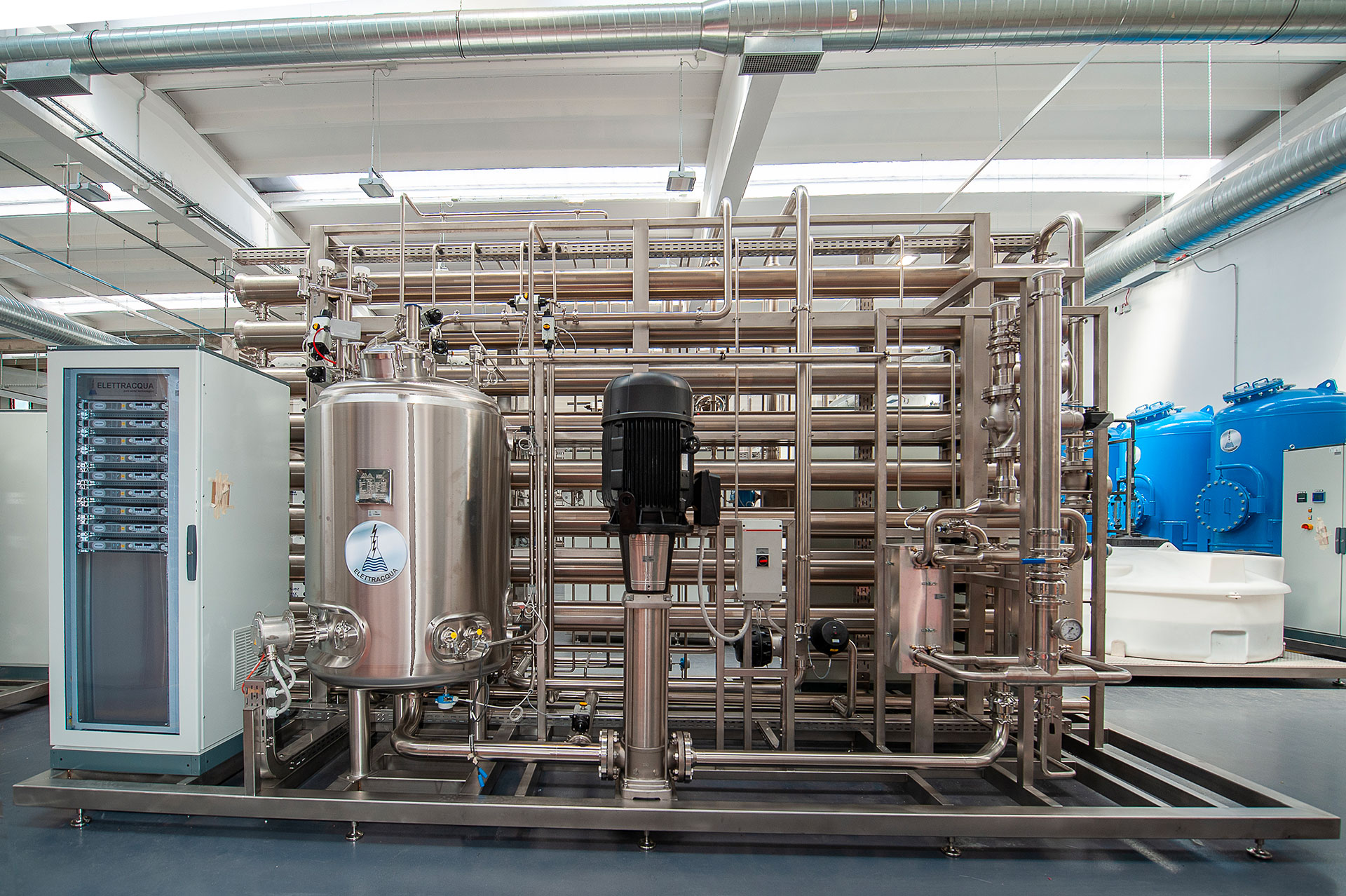

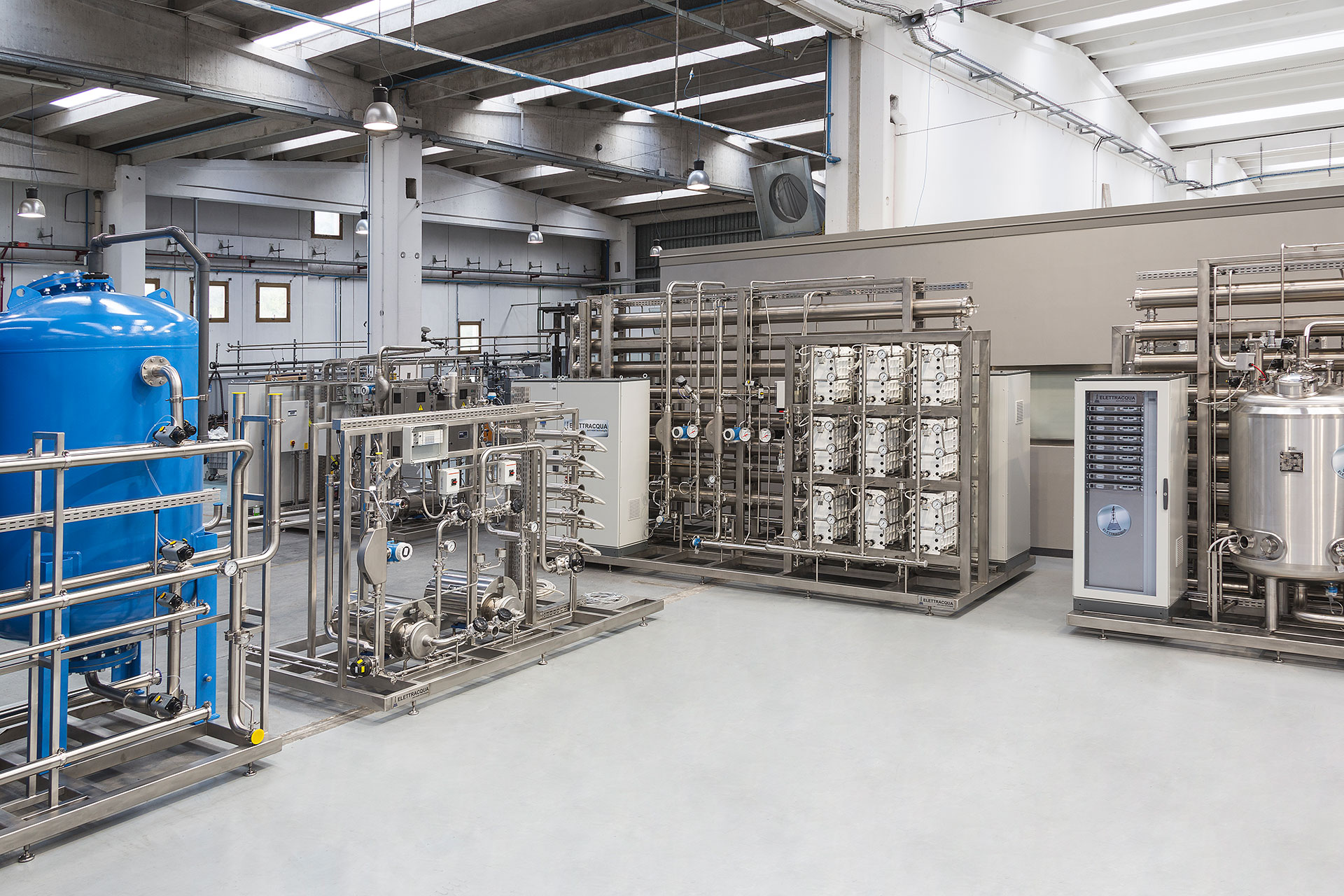

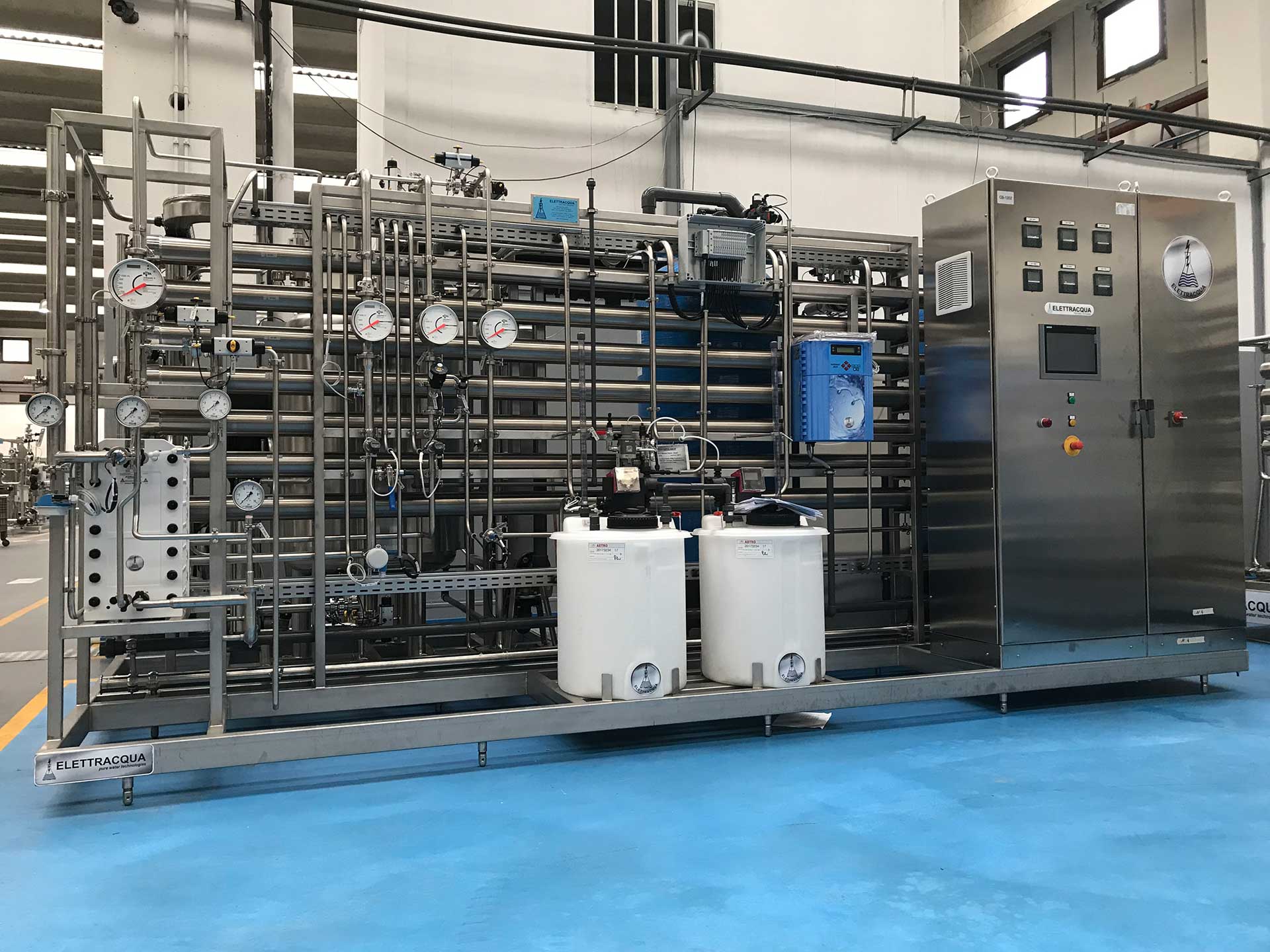

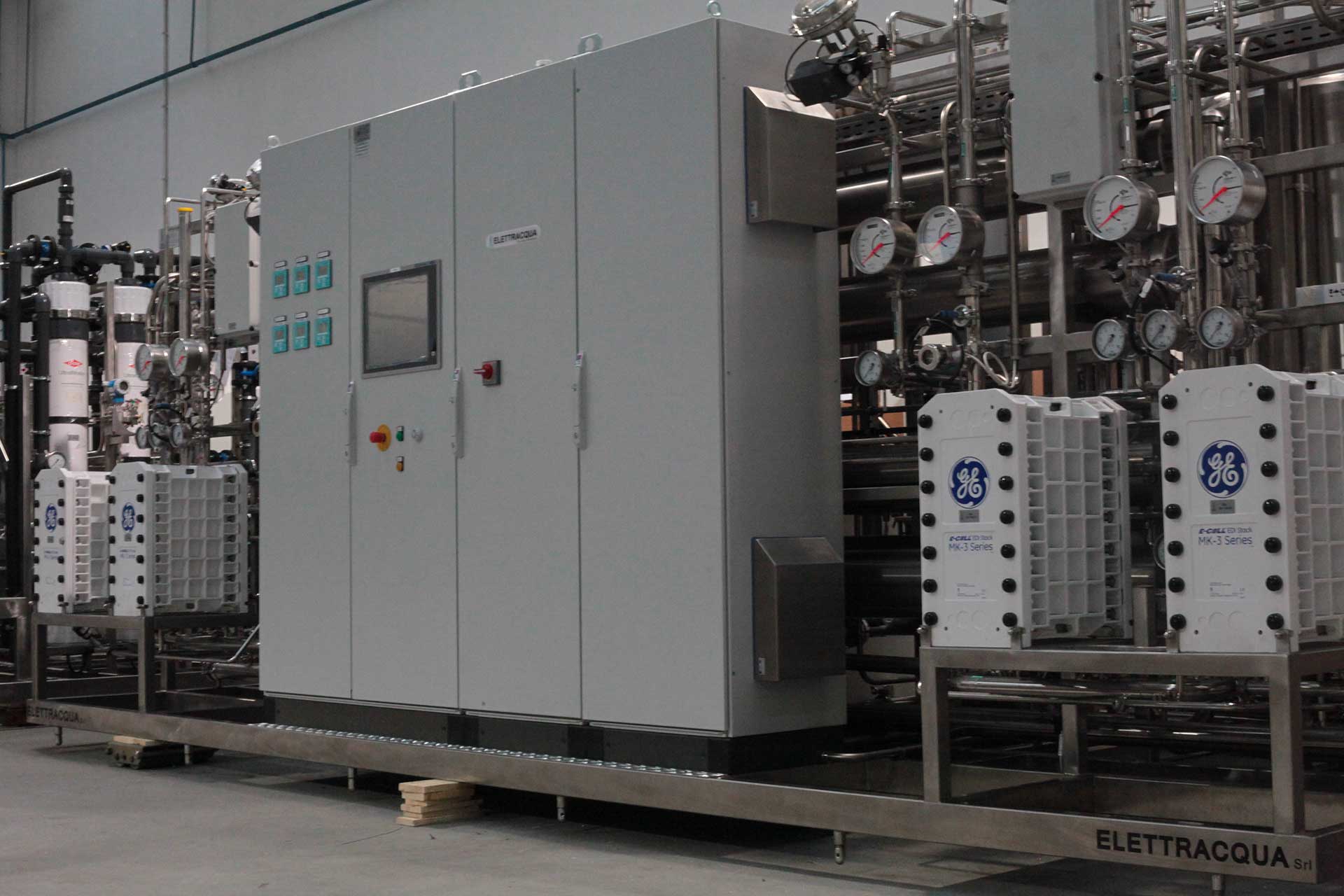

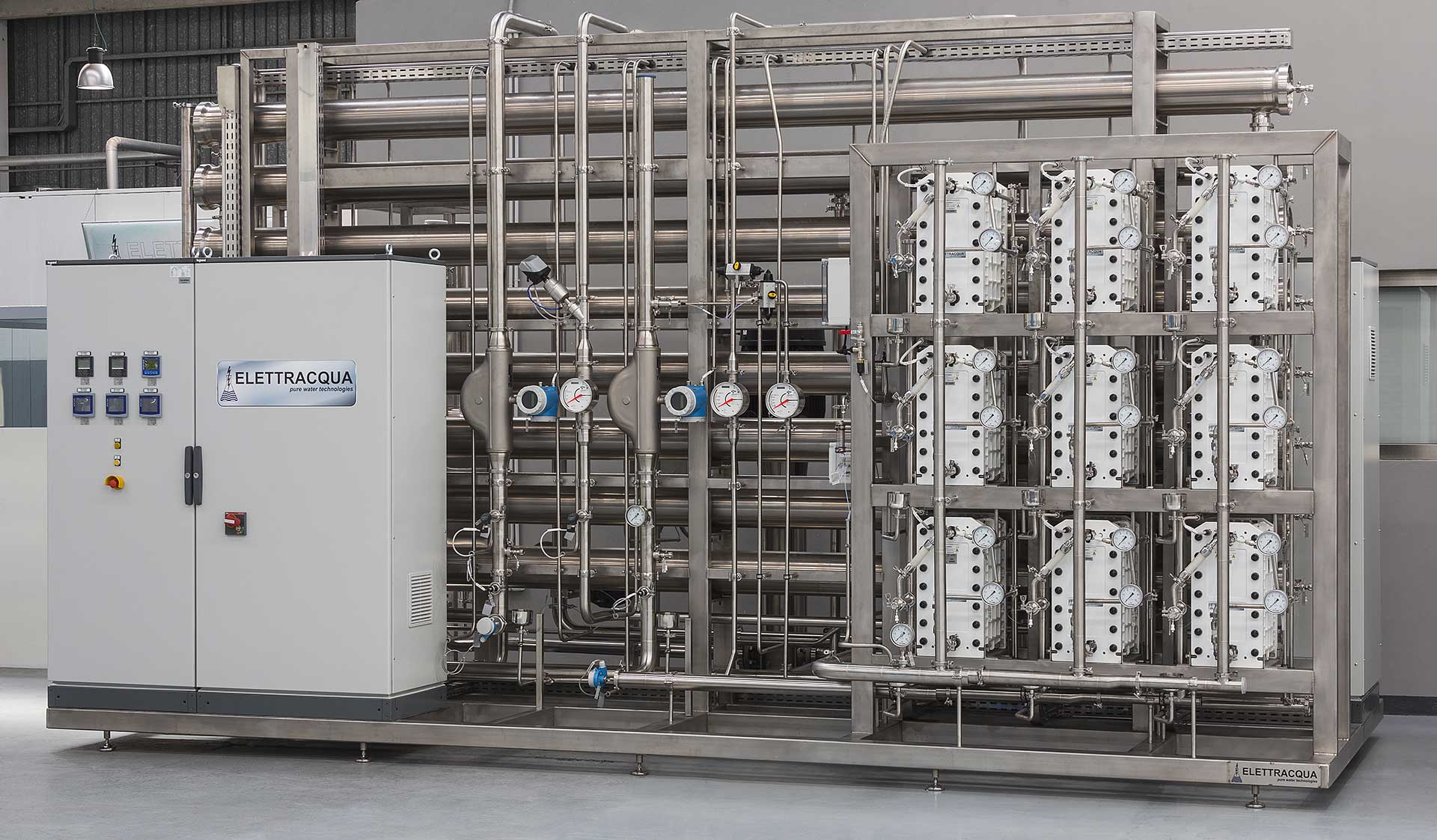

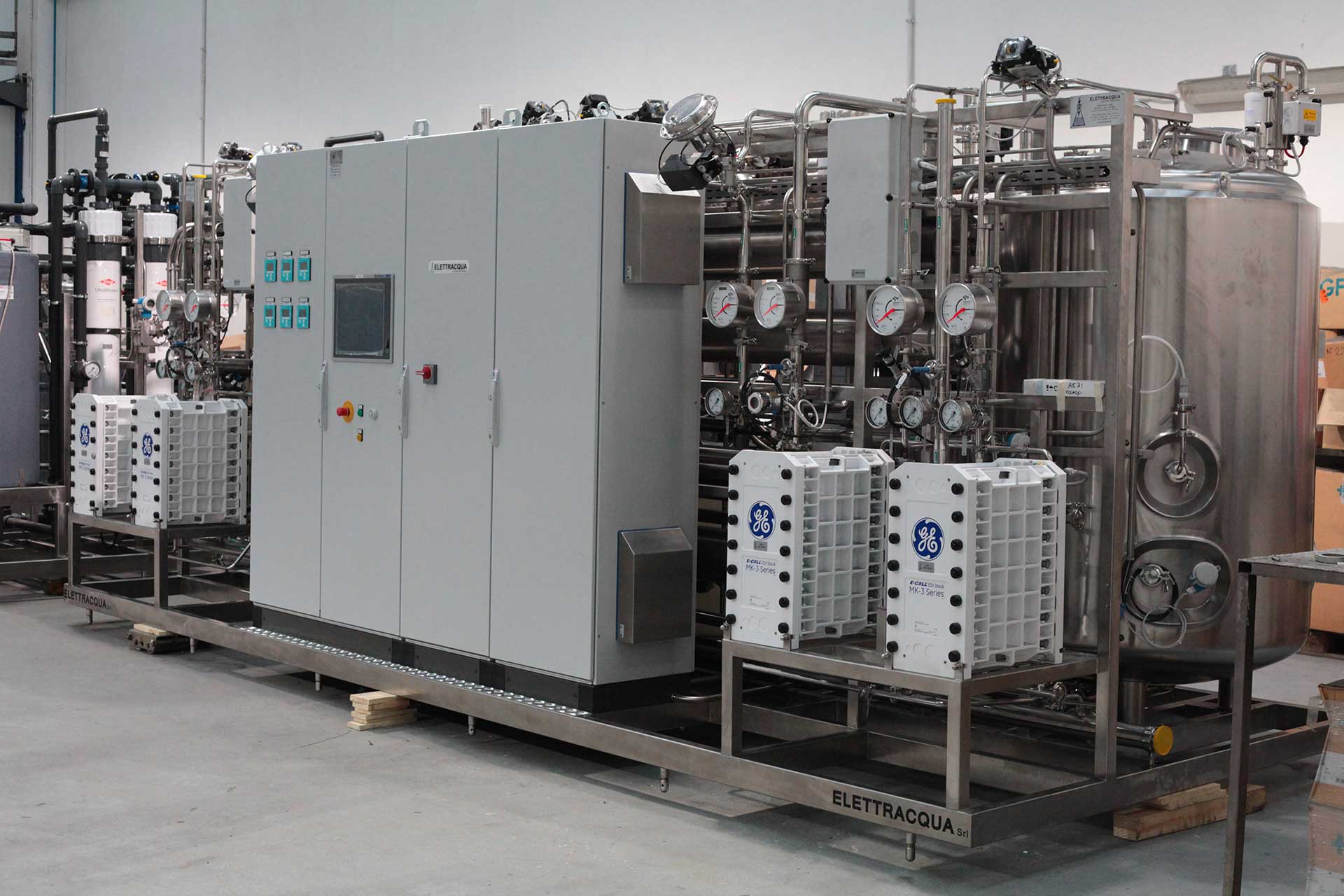

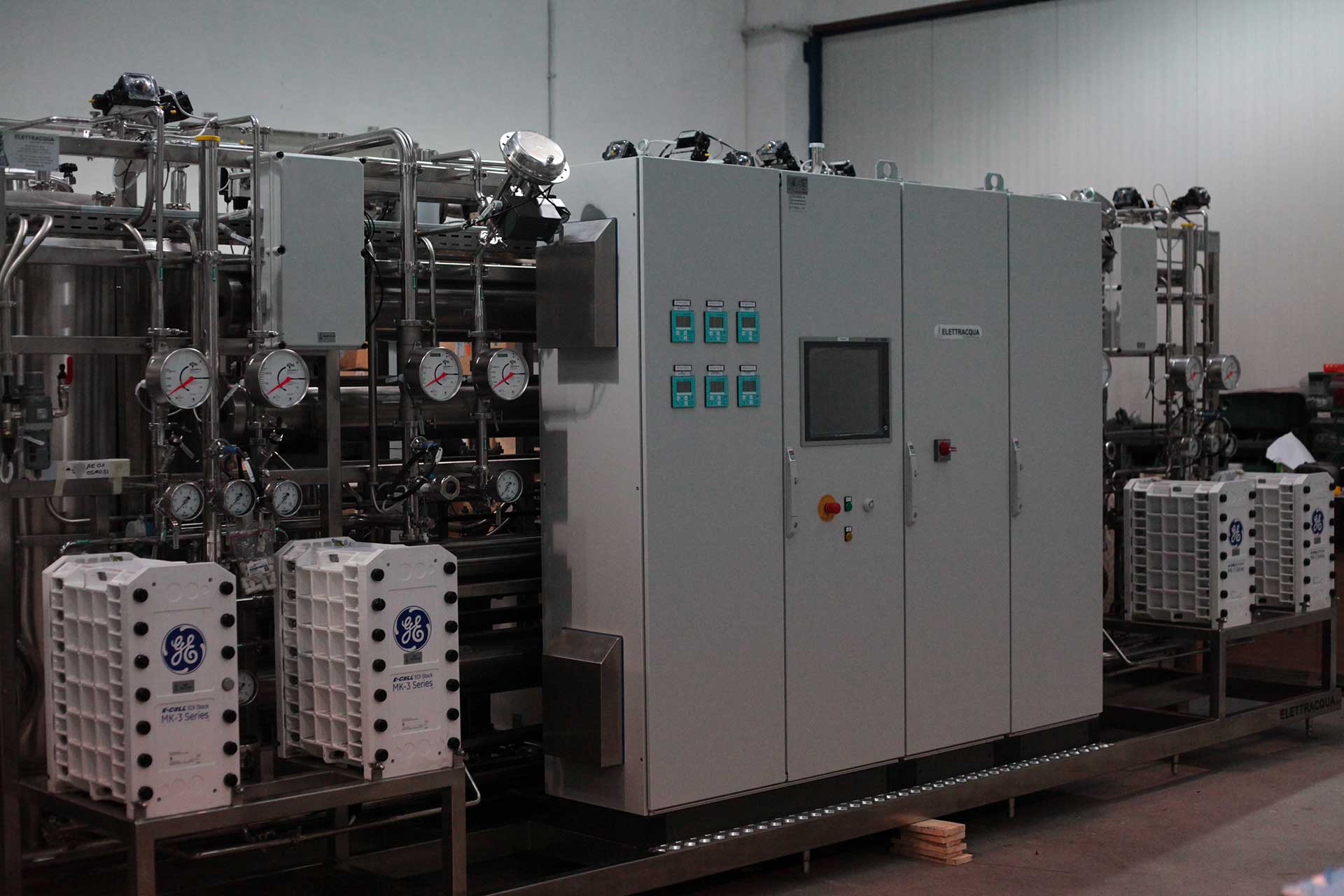

Reverse osmosis + Elettrodeionization (RO+ED I) is a production system including a Pretreatment sec-tion to prepare the water to the following primary purification steps including RO unit before the final Elettrodeionization unit.

Applications: Pharmaceutical Water

  • USP: PW
  • EU Ph: PW

ELETTRACQUA Reverse osmosis + Elettrode-ionization is used for the production of non-compen-dial and compendia) Purified Water (PW) meeting the USP and European Pharmacopoeia, JP Pharmacopoeia requiremenys, several ELETTRACQUA Reverse Osmosis + Elettrodeionization system has been successfully validated across the world.

HPW Highly Purified Water.

The HPW is a standard stated by the EU Parmacopoeia, the final water quality requirements are the same as the USP FDA including the Microbiological limits of 10 CFU/100 ml and the endotoxins limits (0,25 EU). Elettracqua RO double pass and RO+EDI could be designed in order to meet the HPW European stan-dard.

Standards Materials and finishing

ELETTRACQUA PW Systems are designed in compliance to the cGMP and as standard includes:

  • Frame: AISI 304
  • Piping and fittings: AISI 316L ASME BPE SF1
  • Internal Roughness: < 0,51 pm Ra
  • PTFE Gaskets: FDA approved.
  • WELDINGS: Orbital welding will be done wher-ever possible, manual weldings will be done by ELETTRACQUA qualified welders (ASME IX and EN 15614-1).
  • Connections: clamp
  • Membrane Housings: AISI 316L
  • Valves: AISI 316L

System's control

Eletracqua has a proper software engineering team with large experience in the field to develop ad-vanced and reliable software for the system's control. Elettracqua standard control system are PLC/HMI. Gamp 5 compliance, CFR 21 part compliance as option. All the PLC brands on the marked could be used as PLC/HMI. Other available harware architecture are PC or supervision control systems.

Teleservice option is available for the remote sytem control from Elettracqua offices to check, verify and manage the software and the system operations.
