Standard offering:

Double tube-sheet heat exchanger.
316L stainless steel cyclone separator unit.
4-20 mA Feedwater level control.
Pure steam pressure and temperature transmitter.
Plant steam pressure regulation.
Internal mechanical polish to 0.6 pm Ra (available as option Electropolishing and other internal finishing roughness < 0,5 or <0,3 pm Ra).
AISI steel frame.
Standard control system (PLC and HMI)

Options:

Sampling Double tube-sheet heat exchanger.
Conductivity measurement
Pure steam pressure transmitter.
Plant steam pressure regulation.
Internal mechanical polish <0.5 or <0,35 pm Ra
Internal Electropolishing
CFR 21 Part 11 compliant.

PRODUCTION FLOW FROM 20 TO 4000 Kg/h

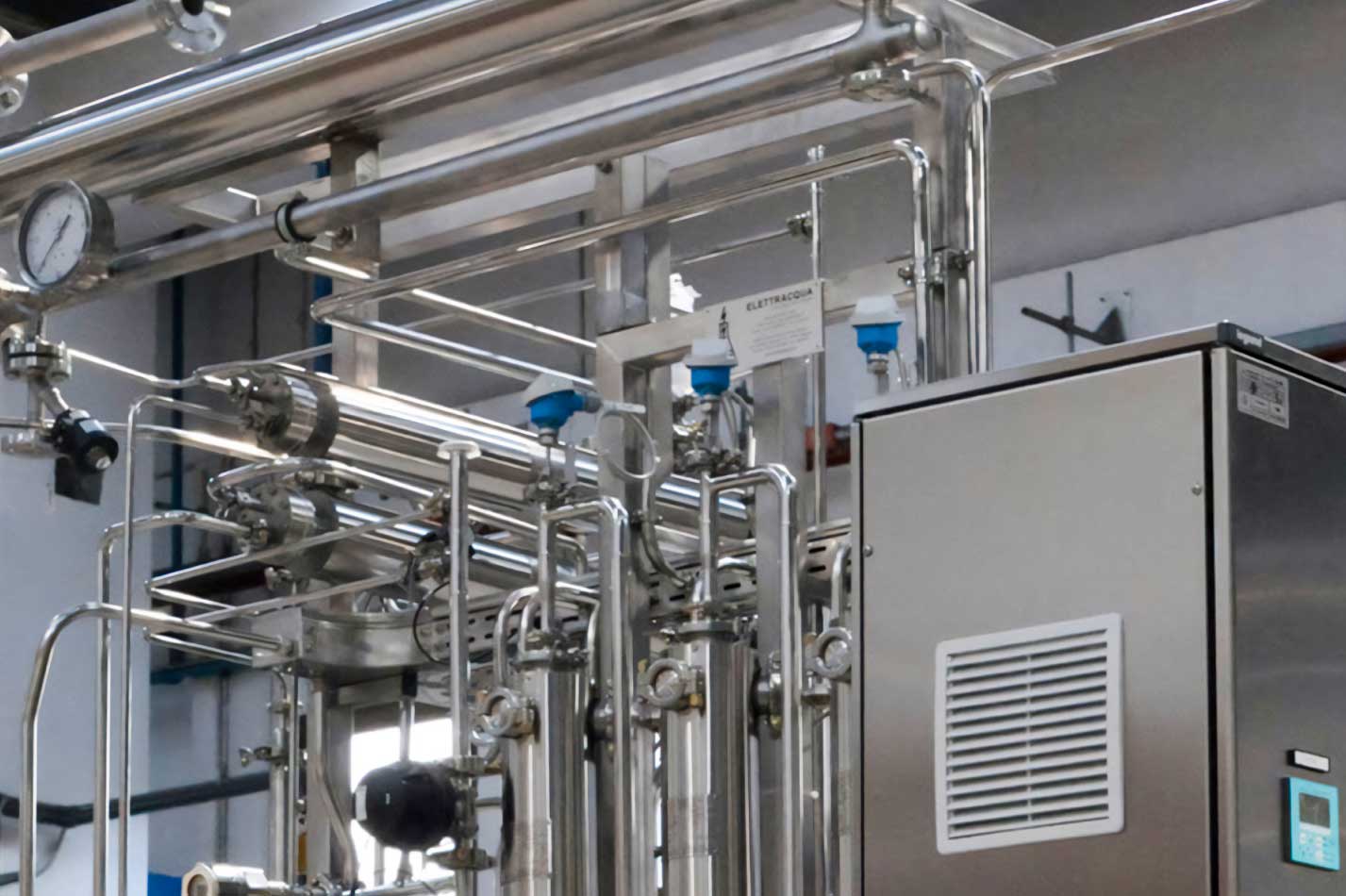

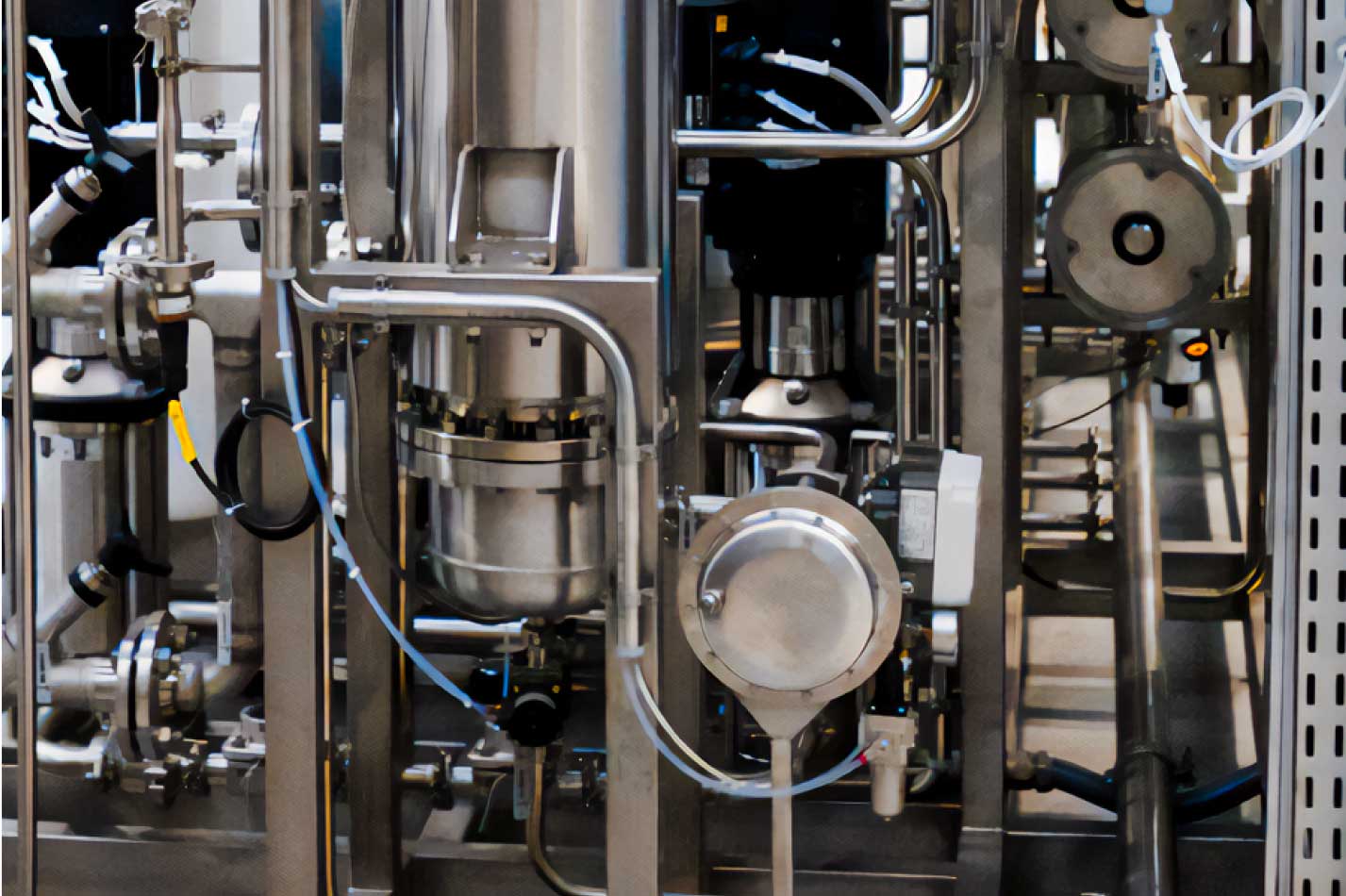

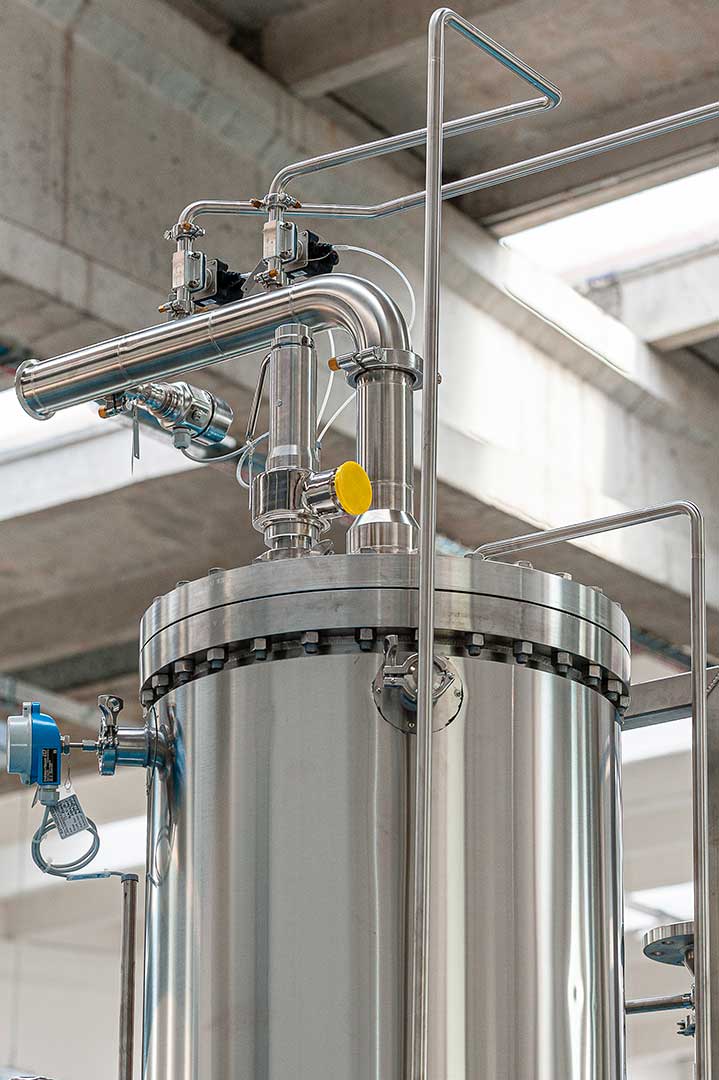

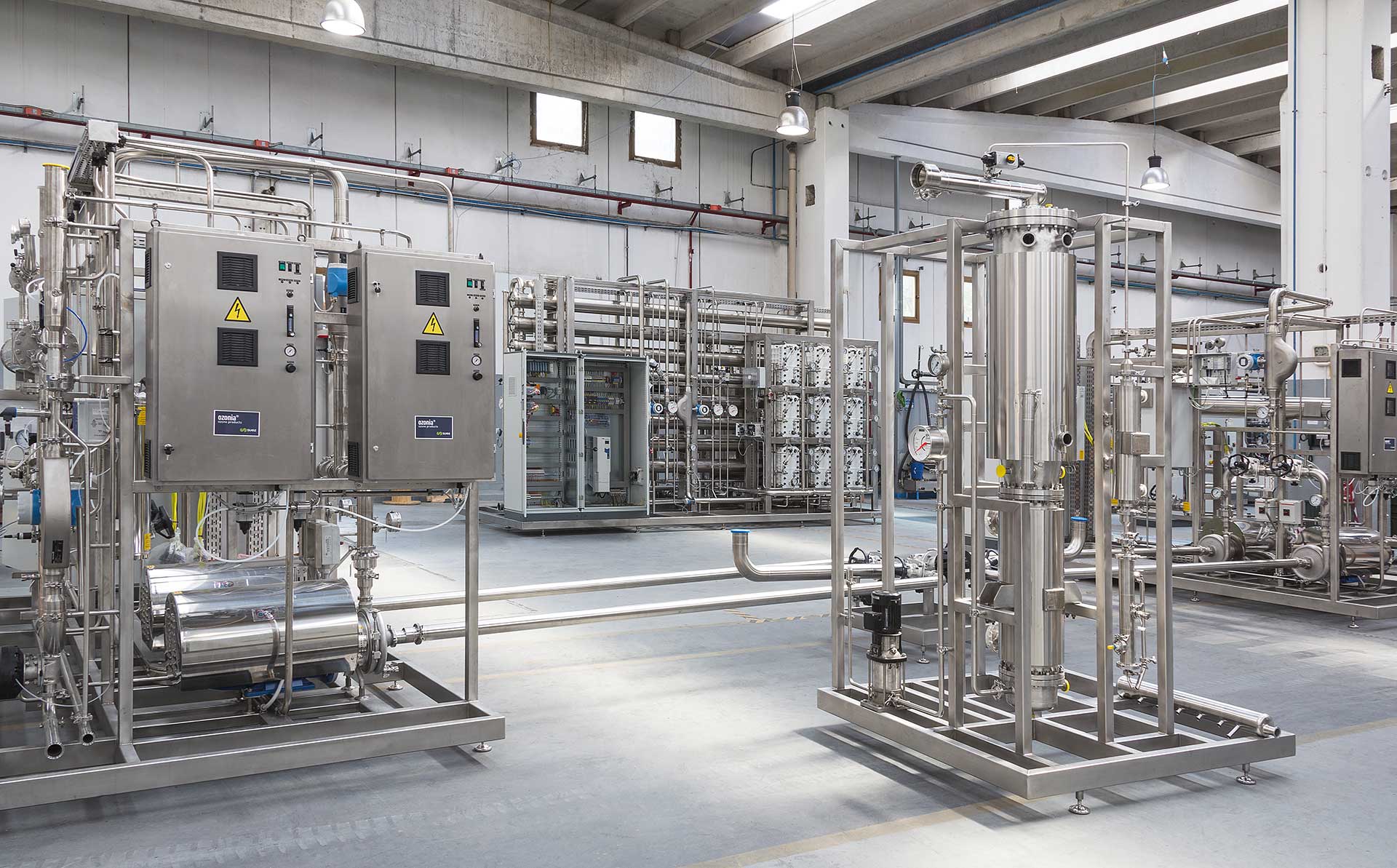

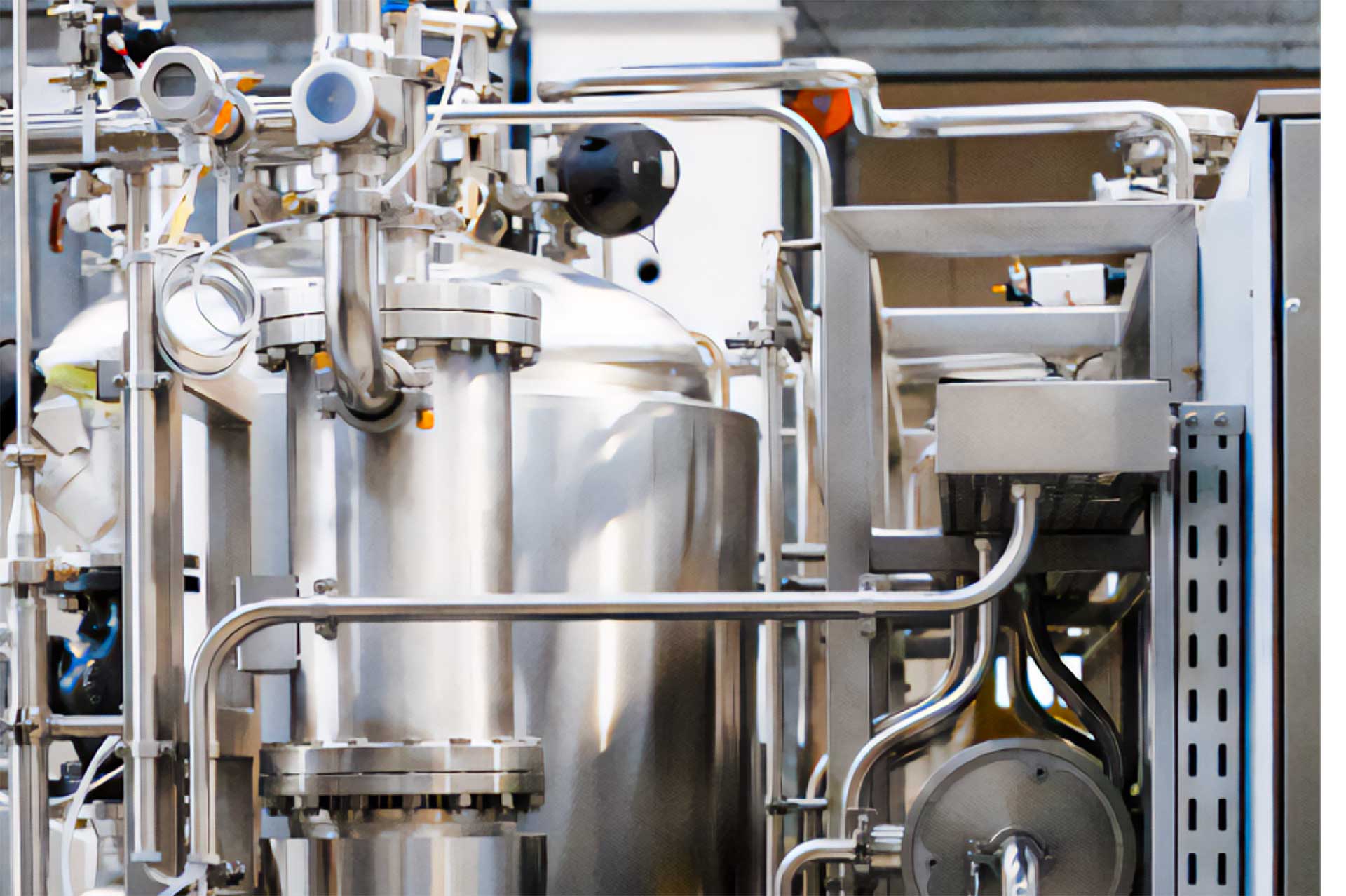

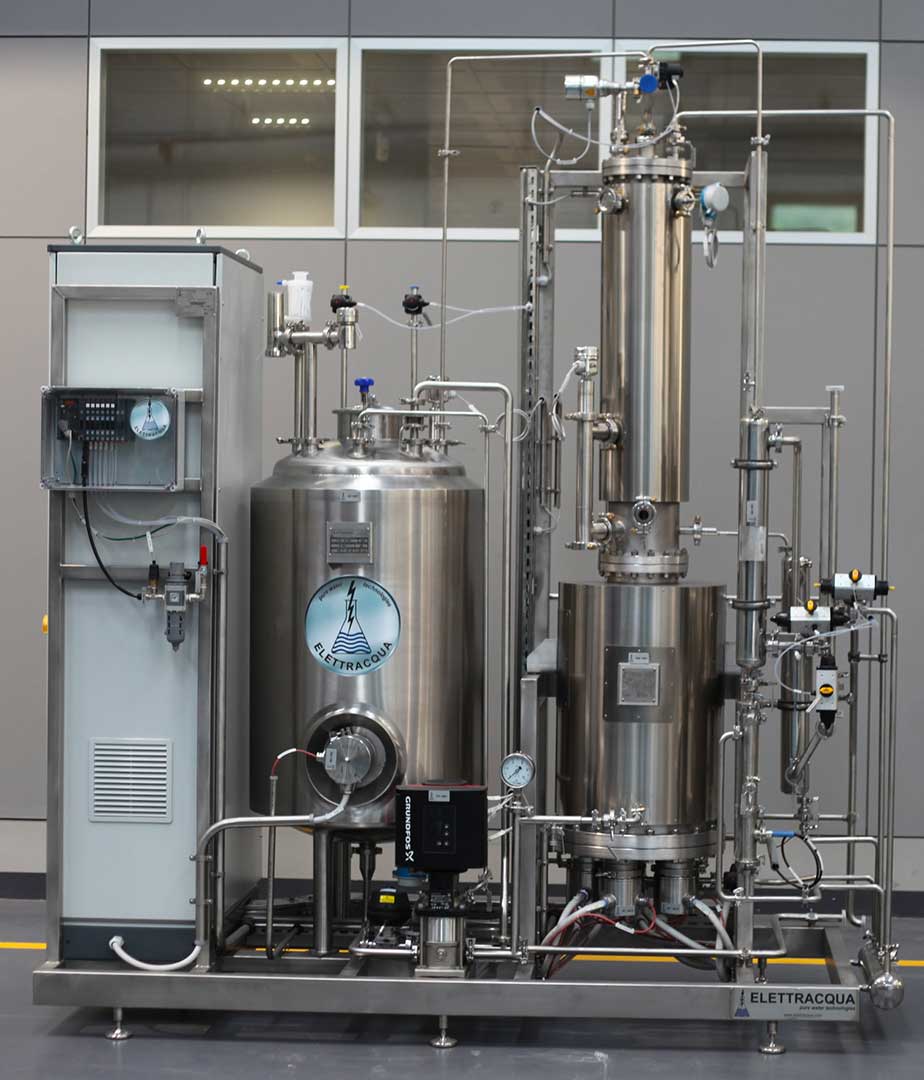

Clean Steam Generators series are designed for use where pure steam is required, such as sterilizers, autoclaves or in-line sterilization of piping syste, and storage tank.

The generators operate on the principle of unassisted thermo-syphon. Clean steam is produced by evaporating feed water within the tubes of the Double Tube Sheet (DTS) heat exchanger and circulating it by natural convection trough a demister. Industrial feed steam supply is controlled by means of pnuematic operated modulating valve activated by a pressure transducer device to enable the clean steam output to be varied according to the demand. System design flowrate from 20 kg/h to 4000 kg/h
